Märklin C-Track, gauge H0 (1:87)

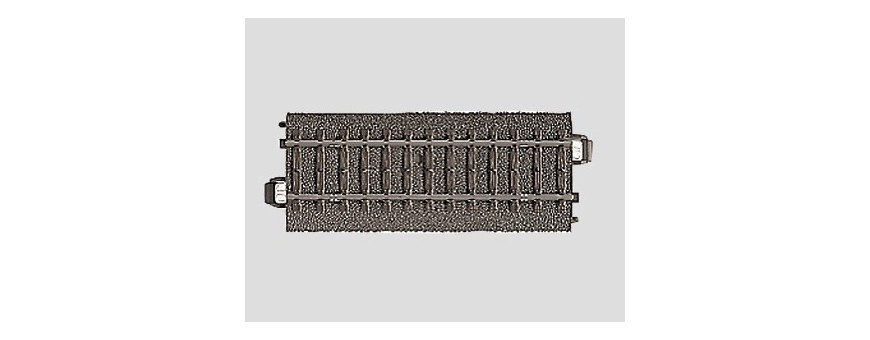

The standard tracks in Märklin C-Track are available in 9 different straight lengths and 6 different radies.

The lengths of the straight standard tracks are presented in the last three numbers of the article number. They correspond to the length of the track, rounded to whole mm.

For example: 24188 = ca 188 mm long.

The curved standard tracks are divided into 6 different radies. The size is presented in the last three numbers of the article number and shows the radius and the number of degrees (rounded to whole degrees) the track part turns.

For example 24130 = R1, 30 degrees.

R1, radius 360 mm (Diameter 720 mm c/c)

R2, radius 437,5 mm (Diameter 875 mm c/c)

R3, radius 515 mm (Diameter 1030 mm c/c)

R4, radius 579,3 mm (Diameter 1158,6 mm c/c)

R5, radius 643,6 mm (Diameter 1287,2 mm c/c)

R9, radius 1114,6 mm (Diameter 2229,2 mm c/c)
